NOTE: This Part will Fit Sundance® or Jacuzzi® Tubs with a Guangdong LX Wet End if you replace the entire Wet End. For just internal parts of the wet end you already have click here Jacuzzi® & Sundance® LX Parts

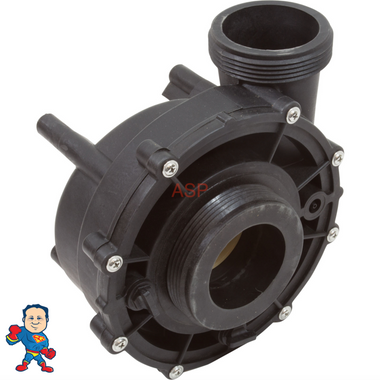

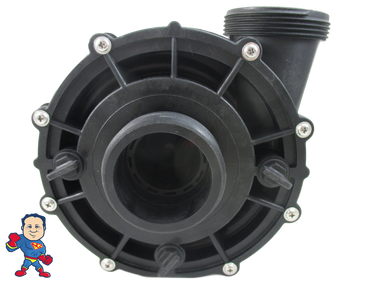

This Listing is a Maelstrom, XP2e Equivalent, 230v, 56fr, 2"X 2" 12A Spa Hot Tub Pump Wet End 56Fr fits Intertek LX Pump Pump Motors As well as Maelstrom 12A Motors only. These pumps usually have the part number 0800-390000 on the label.
It is about 7 1/4" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 4 13/16" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.
