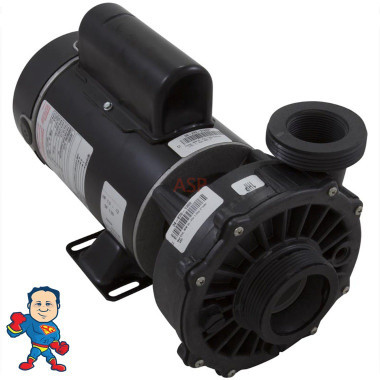

This part is a Complete Hi-Flo Side Discharge 1.5HP 13.3/4.1 Amp 48-Frame Pump is 2" x 2" which measures about 3" across the threads and is an efficient pump designed for high volume discharge for faster filtering cycles. Please see the pictures to be sure that the Hi-Flo Style Waterway Wet End is the correct Wet End for you.. Note: It looks a lot like an Executive Wet End but is much smaller. See Features below to be sure this is the right part for you
Spa Pump Features:
- High volume side discharge efficiency
- 60% more efficient than our center discharge pumps
- 2" intake and discharge
- Wet end can be rotated for easy installation
- Large 6-1/2" diameter wet end for higher head pressure
- Dimensions (H x W x L): 7.5" x 7.375" x 14.23"
| Motor Voltage | 115v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 13.3A/4.1A |
| Horsepower | 1.5SPL |
| Manufacturer | Waterway |
| Pump Model | Hi-Flo |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
